Circulation Pump Replacement on THERMAL CARE NOW05 Chiller – Alameda, CA
Work completed at a site in Alameda, California . The THERMAL CARE NOW05 chiller was reporting a circulation pump overload error. Upon startup, the breaker was tripping, and a blown fuse was found.
Commercial HVAC Chiller Service in Alameda
Work completed at a site in Alameda, California . The THERMAL CARE NOW05 chiller was reporting a circulation pump overload error. Upon startup, the breaker was tripping, and a blown fuse was found.
During service, it was confirmed that the pump impeller had failed, causing the circulation pump to seize. The motor could not rotate, resulting in high current draw and immediate protection shutdown. A locked rotor condition was verified. The electrical system was checked and confirmed fully operational.
- ✅ Full system diagnostics performed
- ✅ Mechanical failure of the pump confirmed

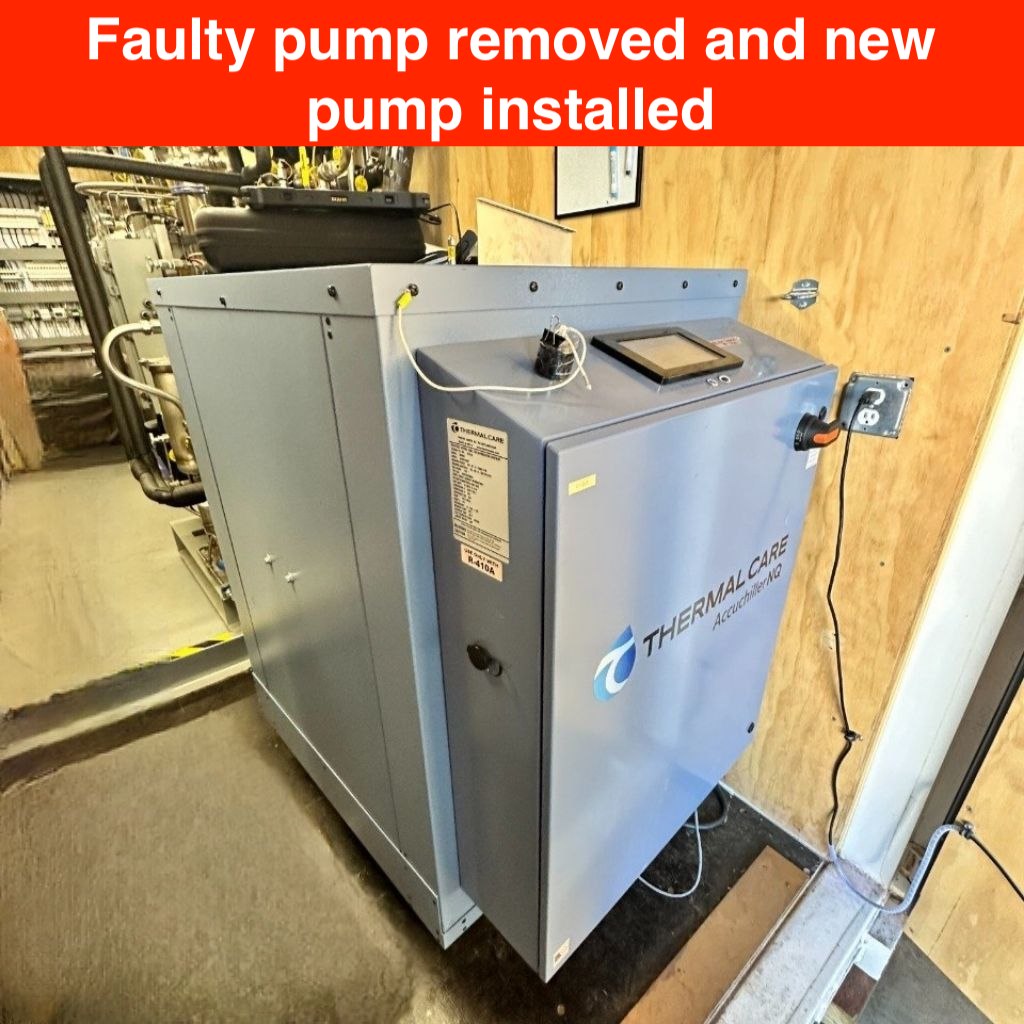

- ✅ Faulty circulation pump removed
- ✅ New pump installed
- ✅ System started up and tested
Circulation has been fully restored and the chiller is now operational.
Cause of Pump Failure
Impeller damage is usually caused by operational factors over time, including:
- Natural wear and material fatigue
- Debris or solid particles entering the system
- Running the pump dry
- Cavitation due to improper flow conditions
- Extended operation under high load
These factors lead to impeller damage, loss of balance, and eventual pump seizure with motor overload.
Maintenance Advice
Regular system inspections, maintaining clean fluid conditions, and monitoring operating parameters significantly reduce the risk of similar failures and extend equipment life.
