HVAC System Diagnosis – Intermittent Operation and Hidden Airflow Issues

A homeowner contacted us regarding a Payne PA15NC024-A air conditioning system that had been operating intermittently for an extended period. The system would occasionally function normally, fail to respond to thermostat commands, or continue operating after the desired indoor temperature had been reached.

To accurately identify the source of the problem, we performed a comprehensive diagnostic inspection of both the indoor and outdoor components of the HVAC system. Intermittent issues can be particularly challenging because equipment may temporarily appear to operate normally while underlying problems remain hidden.

During the inspection, refrigerant levels were checked and confirmed to be within the manufacturer's specifications, ruling out refrigerant-related performance issues. Electrical components and overall system operation were also thoroughly evaluated to ensure the equipment was functioning properly.

We discovered that the indoor unit had been operating without an air filter, allowing dust and debris to accumulate on the evaporator coil. This buildup restricted airflow and reduced the system's overall efficiency. In addition, we identified a malfunctioning thermostat that was responsible for intermittent system operation, delayed responses to temperature changes, and irregular startup and shutdown cycles.

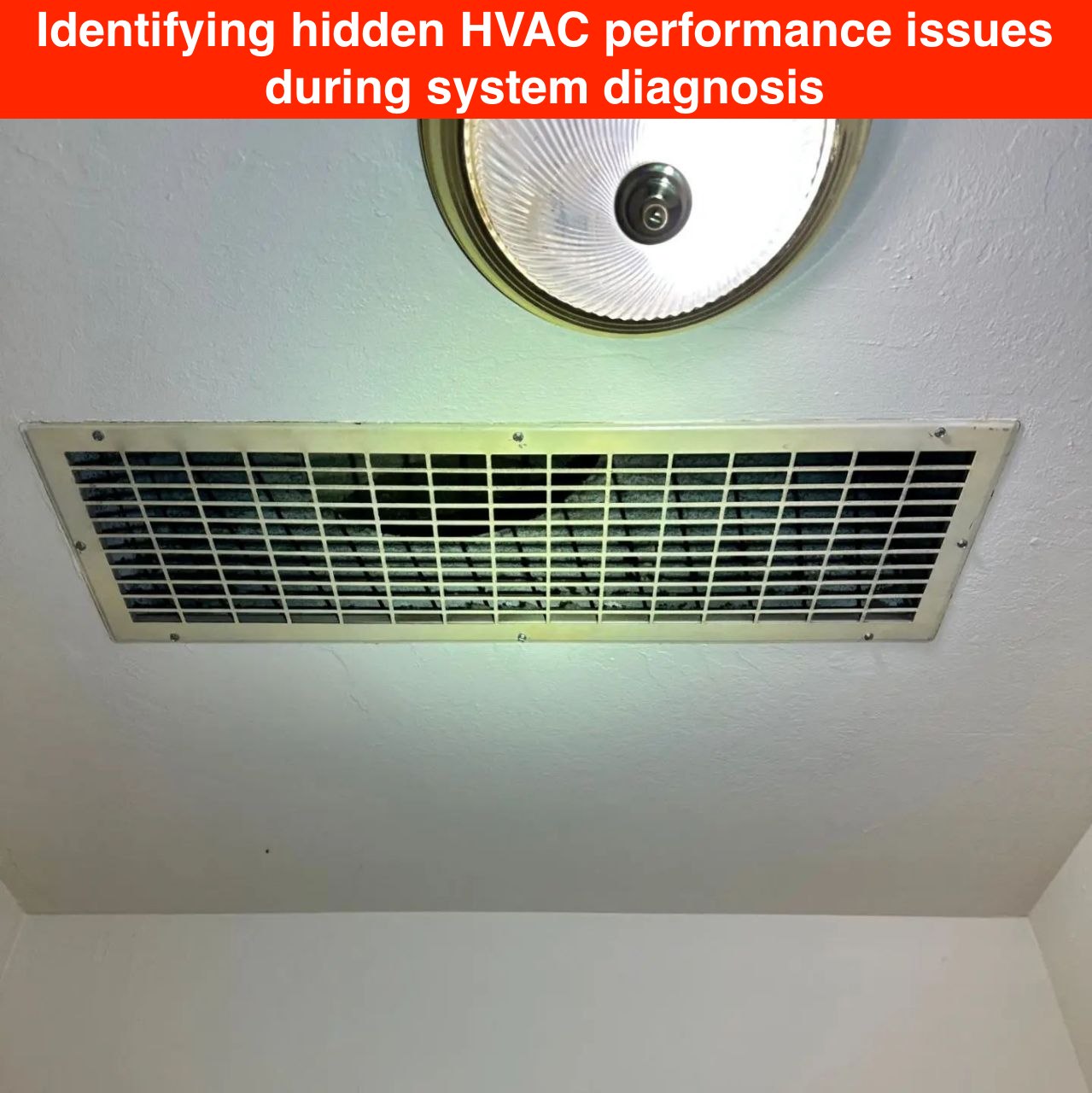

Another important finding involved the return-air design. Unlike most residential HVAC systems, this installation does not utilize a conventional filter rack or filter base. The custom-built return grille is secured with multiple screws, making routine maintenance difficult and contributing to the lack of proper filtration over time.

After completing the diagnostic procedures, we discussed long-term solutions with the homeowner to improve system reliability and simplify future maintenance. Available options include installing a dedicated filter base, which would require removing and reinstalling the furnace, or modifying the existing return-air grille to accommodate a replaceable air filter.

Completed Diagnostic Procedures:

✅ Performed a comprehensive HVAC system diagnostic inspection.

✅ Verified refrigerant levels and confirmed proper system charge.

✅ Tested electrical components and evaluated overall system operation.

✅ Identified evaporator coil contamination caused by the absence of an air filter.

✅ Diagnosed a malfunctioning thermostat responsible for intermittent system operation.

✅ Inspected the return-air assembly and identified filtration design limitations.

✅ Provided recommendations for improving airflow, filtration, and long-term system reliability.

Recommended Repairs:

✅ Replace the thermostat to restore proper temperature control and eliminate intermittent operation.

✅ Clean the evaporator coil to improve airflow, efficiency, and overall system performance.

✅ Modify the filtration system by installing a filter base or rebuilding the return-air grille for easier maintenance.

This project demonstrates why a thorough HVAC diagnosis is essential. What initially appeared to be a simple cooling complaint involved both a control-related issue and a long-term airflow concern caused by inadequate filtration. Properly addressing these issues will help improve comfort, efficiency, and extend the lifespan of the equipment.
