Mini split AC E1 1 error repair in Los Altos

Mini Split E1 Communication Error Repair

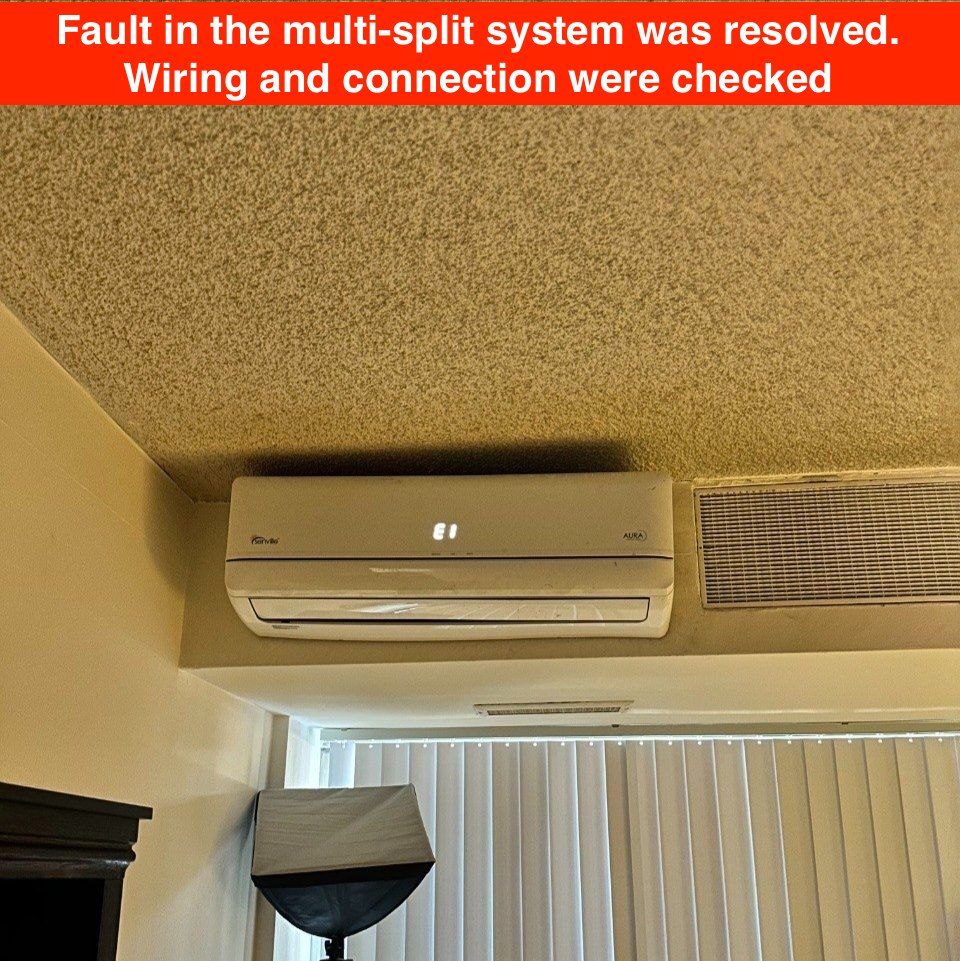

A Senville mini split system was experiencing intermittent shutdowns during operation. The unit would start normally, run for several minutes, and then stop with an E1 communication error. A detailed diagnostic process was required to determine the exact cause of the problem.

The installation itself added significant complexity to the repair. The outdoor unit was located in a very confined area where refrigerant lines, insulation, communication wiring, and structural components were tightly packed together. This made inspection and troubleshooting considerably more time-consuming than a typical service call.

✅ Performed complete system diagnostics and confirmed the E1 fault code

✅ Tested communication circuits between the outdoor unit and two indoor units

✅ Traced communication wiring throughout the entire system

✅ Inspected difficult-to-access sections of the installation

✅ Located damaged communication wiring causing signal loss

✅ Replaced faulty communication wires serving two indoor units

✅ Corrected communication circuit issues and restored proper signal transmission

✅ Performed post-repair system testing

Communication errors such as E1 are often mistaken for control board failures. In this case, the root cause was damaged communication wiring. Identifying the issue required extensive troubleshooting, wire tracing, and work in extremely tight installation conditions.

Total repair cost was approximately $1,000.

💡 Homeowner Tip: If your mini split occasionally displays communication errors and then starts working again, don't ignore it. Intermittent faults often indicate a developing wiring or connection problem that can worsen over time. Addressing the issue early can prevent unexpected system shutdowns during the hottest or coldest days of the year.
