Replacement of Payne PG8JAA048470ADJA control board in client’s furnace, San Jose
The customer reported poor heating in the house. The furnace would start when the thermostat was adjusted, and the blower ran normally, but the air coming from the vents remained cold. The unit is installed in the basement, which made the problem less noticeable at first — the system appeared to be operating, but the home was not warming properly.
Furnace Turns On but No Heat — Control Board Failure | Payne PG8JAA048470ADJA
The customer reported poor heating in the house. The furnace would start when the thermostat was adjusted, and the blower ran normally, but the air coming from the vents remained cold. The unit is installed in the basement, which made the problem less noticeable at first — the system appeared to be operating, but the home was not warming properly.
Access to the furnace was limited due to the basement installation, so part of the surrounding area had to be cleared to reach the control panel and electrical components. Once access was achieved, a full diagnostic and heating cycle test was performed.
The furnace would start and pass initial safety checks, but the heating cycle did not complete. The burners ignited briefly and then shut off, preventing the heat exchanger from warming up and sending cold air into the home.
Further inspection revealed a faulty control board. The safety logic module was not processing sensor signals correctly, causing the system to stop the heating cycle prematurely. This type of issue is common in older equipment, as electronic components wear out over time.
Potential Risks if Left Unrepaired
- ✅ Complete furnace shutdown
- ✅ Frequent system restarts
- ✅ Damage to other components
- ✅ More expensive repairs in the future

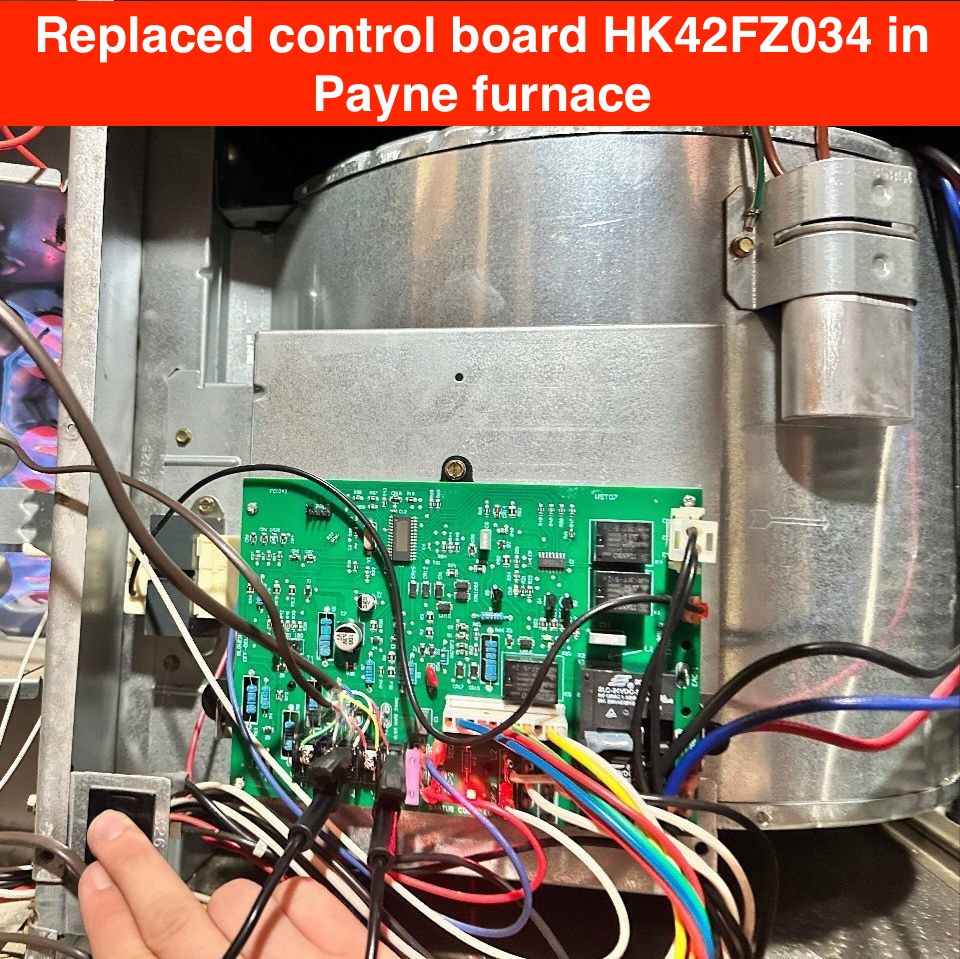

The control board HK42FZ034 was replaced, wiring connections were checked, and multiple test cycles were completed. After the repair, the furnace operated normally and produced steady heat throughout the home.
Total Repair Cost: Under $1000, including parts, labor, and taxes.
If your furnace turns on but does not produce heat, it is best not to delay service — these issues rarely resolve themselves and can lead to more significant repairs over time.
DIAGNOSIS IS FREE WITH REPAIR.
