Uncommon Cause of Carrier AC Water Leak — Repair in Campbell
Most of the time, when an air conditioner starts leaking water, customers assume it’s just a clogged drain line or a faulty condensate pan. That’s a logical guess — in 9 out of 10 cases, the issue really is in the drainage system. But for our customer Jin from Campbell , the situation turned out to be much less common.
Air Conditioner Issue Diagnosis and Repair — Carrier 40MBCQ09---3
DIAGNOSIS IS FREE WITH REPAIR
Most of the time, when an air conditioner starts leaking water, customers assume it’s just a clogged drain line or a faulty condensate pan. That’s a logical guess — in 9 out of 10 cases, the issue really is in the drainage system. But for our customer Jin from Campbell, the situation turned out to be much less common.

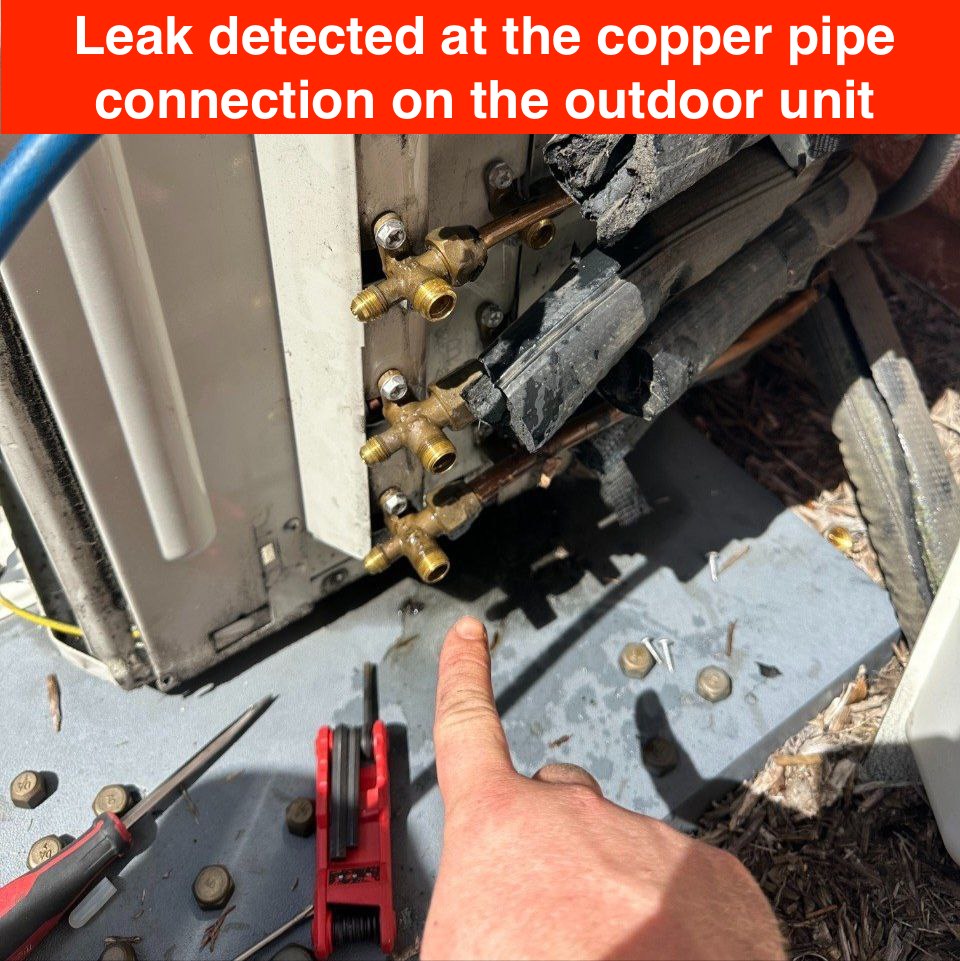

✅ Jin noticed water dripping from his Carrier unit (model 40MBCQ09---3). At first, it looked like a typical drainage issue, but during diagnostics we discovered a refrigerant leak at the connection point of the copper pipes to the outdoor unit. Because of the refrigerant loss, the evaporator started freezing up. Once the ice melted, excess water overflowed, creating the impression of a simple leak.
✅ This type of malfunction is rare compared to a clogged drain, which makes it especially interesting: a very common symptom (water leakage) was actually caused by a refrigerant issue.
✅ What we did: we performed a full diagnostic (free with repair), located the refrigerant leak, sealed the outdoor unit connections, and then recharged the system to the proper level. Now the air conditioner works flawlessly again, and Jin not only got a working system but also learned that simple symptoms can sometimes hide much more complex problems.
Q & A
Q: Why can an AC “leak water” if the drain is clean?
A: Because a refrigerant leak disrupts the cooling cycle. The evaporator coil ices up, and when that ice melts, the excess water bypasses the drain system.
Q: Is it dangerous to keep using the system with this problem?
A: Yes, running without the proper refrigerant charge overloads the compressor and may lead to costly repairs.
Q: Can I fix a refrigerant leak on my own?
A: No, this requires professional equipment, sealing, and a proper system recharge.
